Product Summary

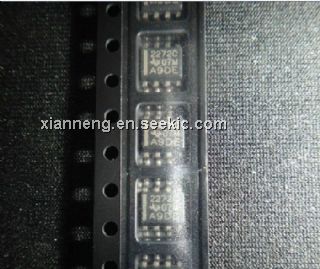

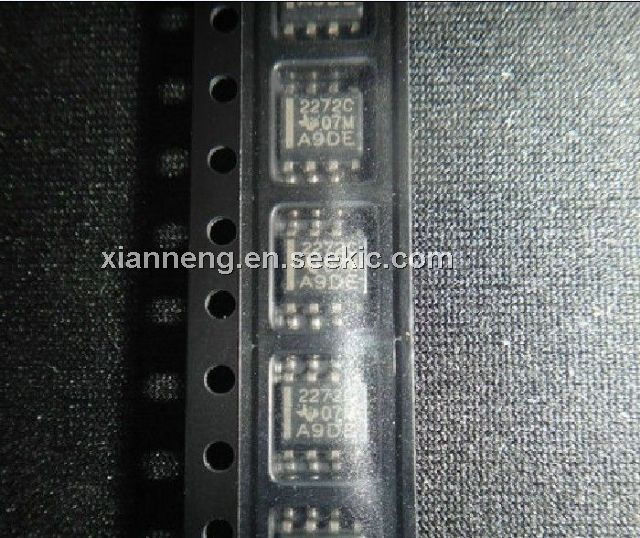

The TLC2272CDR is a dual and quadruple operational amplifier from Texas Instruments.

It offers 2 MHz of bandwidth and 3 V/μs of slew rate for higher speed applications.


1.Payment terms
T/T
PAYPAL
ESCROW

2. Shipping

We can ship all over the world by DHL, UPS, FedEx and EMS. It will take around 3-5 days to reach your hands .The packaging is very safe and strong. If you have any special needs please inform me.

3. Buyer reading

A: Please confirm receipt of products if the items you received, and if the goods were damaged please contact us immediately. Send the photo to us that we can check and give you best solution.
B: We only guarantee Delivery in time but we couldn’t control the express delivery time. Our related sales person will be responsible to send the AWB for the delivered goods in the next workday. You can check the AWB in the website which we send to you. For the AWB you also can call to the local branch of the express company in your company.

4. Contact information

Sales person: Kristin Peng

Email: sales4@xiannenghk.com

Tel: 86-755-61390087


Parametrics

Absolute maximum ratings: (1)Supply voltage:8 V; (2)Supply voltage:-8 V; (3)Differential input voltage:±16 V; (4)Input voltage range:VDD- -0.3V to VDD+; (5)Input current:±5 mA; (6)Output current:±50 mA ; (7)Total current into:±50 mA; (8)Total current out of VDD-:±50 mA; (9)Duration of short-circuit current at (or below) 25℃:unlimited .

Features

Features: (1)Output Swing Includes Both Supply Rails; (2)Low Noise:9 nV/√Hz Typ at f = 1 kHz; (3)Low Input Bias Current:1 pA Typ; (4)Fully Specified for Both Single-Supply and Split-Supply Operation; (5)Common-Mode Input Voltage Range Includes Negative Rail; (6)High-Gain Bandwidth:2.2 MHz Typ; (7)High Slew Rate:3.6 V/μs Typ.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TLC2272CDR
TLC2272CDR

Texas Instruments

Operational Amplifiers - Op Amps Dual R/R Op Amp

Data Sheet

0-1: $1.13
1-25: $0.91
25-100: $0.82
100-250: $0.71
TLC2272CDRG4
TLC2272CDRG4

Texas Instruments

Operational Amplifiers - Op Amps Dual R/R Op Amp

Data Sheet

0-1790: $0.50
1790-2000: $0.47
2000-2500: $0.47
2500-5000: $0.45
